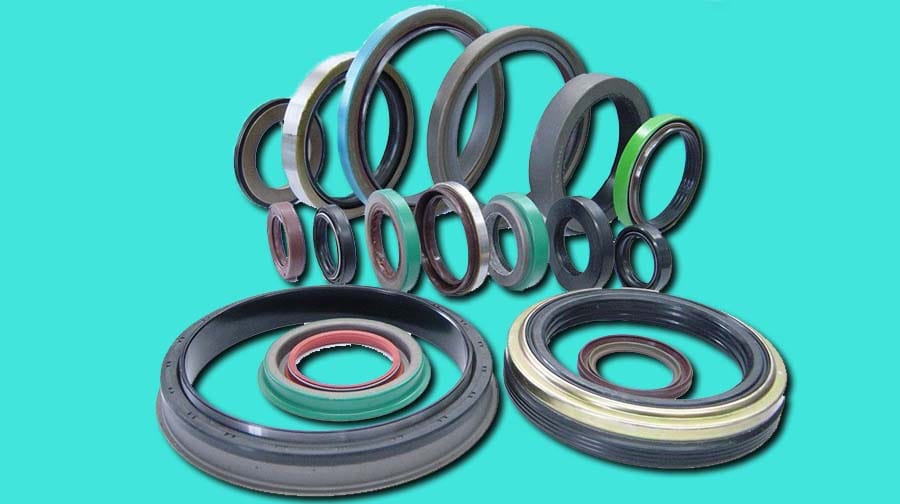

What is a SOG Oil Seal?
KODA is an oil seal manufacturer that supplies a variety of oil seals, including those made of nitrile rubber (NBR) and fluororubber (FKM). SOG oil seals typically consist of an outer rubber (NBR/Viton/silicone) or metal component and an inner flexible sealing ring. The inner flexible sealing ring is bonded to the metal component using a chemical adhesive to achieve the actual sealing function.
What Is a SOG Oil Seal & Core Purpose?
A SOG Oil Seal is a precision dynamic seal that:
- Contains fluids: Stops oil, grease, hydraulic fluid, or coolant from leaking along rotating shafts.
- Excludes Contaminants: Blocks dust, dirt, water, and debris from entering bearings or gearboxes.
- Absorbs vibration: Reduces friction and stabilizes shaft movement under load.
- Protects components: Extends lifespan of engines, transmissions, pumps, and axles by maintaining proper lubrication.

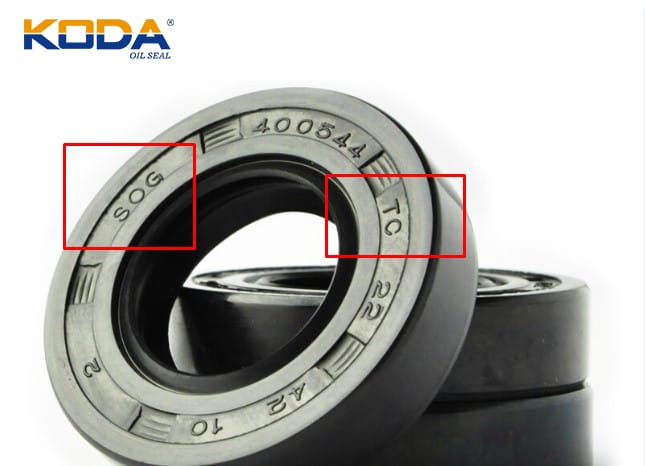

SOG Oil Seals are recognized by the “SOG” laser marking on the outer case, ensuring genuine OEM-quality performance.

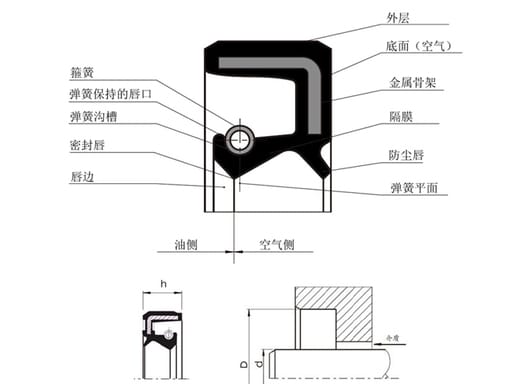

SOG Oil Seal: Internal Structure
- High-grade rubber (NBR, FKM, etc.) molded to the skeleton.
- Precision-machined main sealing lip that contacts the shaft.
- Optional secondary dust lip for extra contamination protection.Elastomer Seal Body
- Self-Tightening Spiral Spring
- Stainless steel garter spring that maintains constant radial pressure on the shaft.
- Compensates for lip wear, thermal expansion, and shaft eccentricity to sustain sealing force
Key Types of SOG Oil Seals
1. TC Type SOG Oil Seal (Most Common)
- Double lip: Main sealing lip + secondary dust lip.
- Rubber-bonded outer case for excellent fit and vibration damping.
- Applications: Automotive engines, transmissions, gearboxes, general industrial machinery.
2. SC Type SOG Oil Seal
- Single lip, exposed metal outer case.
- High precision, good heat dissipation.
- Applications: Hydraulic pumps, motors, agricultural equipment.
3. TB/TA Type SOG Oil Seal
- Single lip, rubber-covered case.
- For low-pressure, standard-speed applications.
4. TCN/TCV Type SOG Oil Seal
- High-pressure design (up to 3 MPa).
- Reinforced lip and structure for heavy-duty hydraulic systems.
5. PTFE SOG Oil Seal
- Polytetrafluoroethylene (PTFE) sealing lip.
- Extreme chemical resistance, high temperature (-60°C to 260°C), low friction.
- Applications: Chemical pumps, food processing, high-speed machinery.
SOG Oil Seal Materials & Performance
SOG uses premium elastomers matched to operating conditions:
| Material | Temperature Range | Key Properties | Best For |
|---|---|---|---|
| NBR (Nitrile Rubber) | -35°C to +120°C | Excellent oil/fuel resistance, wear-resistant, cost-effective | Standard automotive, engines, transmissions |
| FKM (Fluoroelastomer/Viton) | -20°C to +220°C | Superior heat/chemical resistance, long life | High-temperature engines, hydraulic systems, heavy industry |
| EPDM | -40°C to +150°C | Water/steam/ozone resistance | Water pumps, cooling systems, marine equipment |
| Silicone | -50°C to +230°C | Extreme temperature stability | High-temperature static/dynamic seals |
| PTFE | -60°C to +260°C | Chemical inert, low friction | Chemical, pharmaceutical, high-speed applications |
Where Are SOG Oil Seals Used?
- Automotive: Crankshafts, camshafts, transmissions, differentials, wheel hubs, power steering.
- Industrial: Gearboxes, reducers, conveyor systems, motors, textile machinery.
- Hydraulic/Pneumatic: Pumps, valves, cylinders, construction equipment.
- Marine/Heavy Equipment: Ship engines, mining machinery, agricultural tractors.
- Aerospace & Specialty: High-performance rotating systems requiring reliable sealing.
How Does a SOG Oil Seal Work?
- Radial Sealing Force: The spring preloads the lip against the shaft, creating a tight contact zone.
- Lubricating Film: A micro-thin oil layer forms between lip and shaft—lubricates and prevents metal-to-metal contact.
- Pump-Back Effect: The lip’s hydrodynamic design pushes leaked fluid back into the housing, stopping external leakage.
- Dust Barrier: Secondary lip blocks contaminants from reaching the main seal and bearings.
Advantages of Choosing SOG Oil Seals
- Wide Compatibility: 12,000+ standard sizes and custom options.
- Consistent Quality: Precision manufacturing, tight tolerances (±0.05 mm).
- Long Service Life: Premium materials resist wear, heat, and chemicals.
- Cost-Effective: OEM performance at competitive pricing.
- Global Availability: Ready stock and fast worldwide shipping.
Common SOG Oil Seal Failures & Fixes
1. Leakage
- Causes: Worn lip, improper installation, spring failure, damaged shaft, wrong size/material.
- Fix: Replace with genuine SOG Oil Seal; check shaft for wear; install correctly.
2. Hardening/Cracking
- Causes: Overheating, chemical exposure, aging.
- Fix: Upgrade to FKM/HT-grade SOG Oil Seal; improve cooling/lubrication.
3. Lip Wear
- Causes: Contaminants, dry running, misalignment, excessive speed.
- Fix: Install double-lip SOG Oil Seal; ensure proper lubrication; align shaft.
4. Installation Damage
- Causes: Forceful hammering, incorrect direction, sharp edges on shaft/housing.
- Fix: Use installation tools; protect lip from keyways/threads; verify spring side faces oil.
How to Install a SOG Oil Seal
- Inspect & Clean: Remove old seal; clean housing/shaft; repair nicks or burrs.
- Lubricate: Apply compatible grease to lip, outer diameter, and shaft.
- Check Direction: Lip faces oil side; spring toward lubricant; follow SOG’s marked arrow.
- Press In: Use a sleeve/install tool to press evenly—no hammering.
- Verify: Ensure seal is fully seated and square; test run at low load first.
How to Select the Right SOG Oil Seal
- Measure Dimensions: ID (shaft) × OD (housing) × width (mm/inch).
- Define Conditions: Temperature, pressure, speed, fluid type, contamination level.
- Choose Type: TC (double lip) for most uses; TCN for high pressure; PTFE for chemicals.
- Select Material: NBR for standard; FKM for high heat; EPDM for water.
- Verify Genuine: Check “SOG” marking and packaging to avoid counterfeits.
Conclusion
SOG oil seals are high-quality, reliable radial shaft seals designed to prevent fluid leakage and contamination in rotating equipment. With their robust construction, wide product range, and high-quality materials, SOG oil seals deliver lasting performance in automotive, industrial, and hydraulic applications. Proper selection, installation, and maintenance ensure the longest service life and minimum downtime, making SOG oil seals the preferred choice for engineers and maintenance professionals worldwide.
For your specific application, please refer to the SOG product catalog or consult a sealing expert to select the SOG oil seal suitable for your operating conditions.
Need help selecting the right SOG Oil Seal for your equipment? I can provide a custom size and material recommendation based on your shaft dimensions, temperature, and fluid type.
