In the field of industrial sealing, O-rings and oil seals are core components, and their material selection directly determines the sealing performance, service life, and operating costs of the equipment. As a high-performance polymer material, polyurethane (PU) has recently replaced traditional rubber and has become the preferred material for O-rings and oil seals under high-pressure and high-wear conditions.
Core performance advantages of polyurethane O-rings and oil seals
Polyurethane material combines high-strength mechanical properties with excellent elasticity through a special hard segment-soft segment micro-phase separation structure. When used in O-rings and oil seals, it shows several irreplaceable advantages:
1. Extremely wear-resistant and tear-resistant, extending service life
The wear resistance of polyurethane is 5-10 times that of ordinary nitrile rubber (NBR), and its performance is particularly outstanding in dynamic sealing scenarios. Whether it is the reciprocating motion of the hydraulic system or the high-speed rotation of the gearbox, polyurethane O-rings and oil seals can resist friction loss and prevent premature wear and tear of the sealing lip. Experimental data show that in construction machinery hydraulic cylinders, the replacement cycle of polyurethane O-rings can reach 8,000 hours, far exceeding the 3,000 hours of traditional rubber parts. At the same time, its high tensile strength and tear resistance can effectively cope with mechanical stress under high-pressure conditions and reduce the risk of seal failure.
2. Excellent pressure resistance and extrusion resistance, suitable for high-pressure scenarios
Under high-pressure conditions, seals are prone to extrusion deformation or even breakdown, but polyurethane materials have excellent pressure resistance. Standard polyurethane O-rings can withstand 35 MPa pressure, with a compression permanent deformation rate of less than 15%, and the modified model’s pressure resistance can reach 50 MPa; polyurethane oil seals can work stably when the pressure does not exceed 16 MPa and can be used with retaining rings to adapt to higher pressure scenarios. In contrast, traditional nitrile rubber O-rings need to be equipped with flat washers when the pressure exceeds 5 MPa; otherwise, they are prone to extrusion damage, and their applicable scenarios are obviously limited.
3. Good media compatibility and environmental adaptability
Polyurethane has excellent resistance to commonly used industrial media such as mineral oil, hydraulic oil, and hydrocarbon fuels. Its volume expansion rate is less than 5%, which is much better than ordinary rubber products. It can effectively avoid aging and failure of seals caused by media erosion. In terms of temperature adaptability, standard polyurethane O-rings and oil seals can work stably in the range of -40℃~120℃, and the modified formula can be extended to -40℃~230℃ to meet the needs of extreme high- and low-temperature conditions. At the same time, it has certain anti-ozone and anti-ultraviolet capabilities and has a longer service life in outdoor or open-air equipment.
4. Balance elasticity and a low friction coefficient to ensure sealing stability
Polyurethane can quickly return to its original shape after being deformed by force, ensuring a tight fit between the sealing surfaces. It can maintain a stable sealing effect even under repeated starts and stops and dynamic working conditions, reducing the risk of leakage. Some specially formulated polyurethanes also have a low friction coefficient. The dry friction resistance can be controlled between 0.4 and 0.6 and even lowered to 0.3-0.5 when lubricated. This can not only reduce the wear of seals and mating surfaces but also reduce the energy consumption of equipment operation.

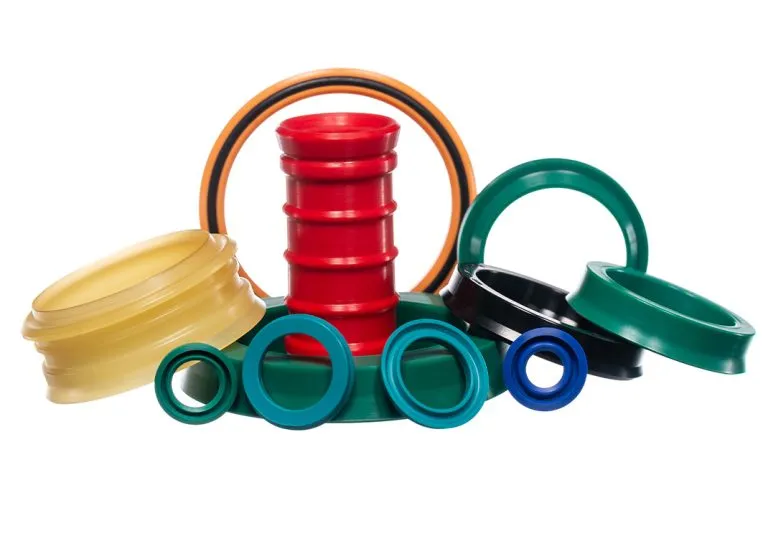

Adapted working conditions and industry applications of polyurethane O-rings and oil seals
Based on the above performance advantages, polyurethane O-rings and oil seals are particularly suitable for harsh working conditions and are widely used in the following industries:
1. High-pressure hydraulic and pneumatic systems
The hydraulic cylinders and hydraulic valves of construction machinery such as excavators and loaders, as well as the mold clamping mechanism of injection molding equipment, are often in a state of high-pressure and high-frequency reciprocating motion. Polyurethane O-rings and oil seals can resist high-pressure extrusion, friction, and wear, extending the equipment maintenance cycle. Enterprises such as XCMG Group have used polyurethane seals in hydraulic cylinders to extend the sealing life to more than 5,000 hours.
2. Heavy-duty and mining machinery
The working environment of mining machinery, slurry pumps, and other equipment is dusty and heavily loaded, and seals are susceptible to wear by pollutants and pressure shock. With their excellent wear resistance and tear resistance, polyurethane oil seals can effectively block dust intrusion, prevent lubricating oil leakage, and meet the sealing needs under heavy loads.
3. Automobiles and transmission equipment
Automotive engines, transmission shafts, wheel hubs, as well as gearboxes, reducers, and other transmission equipment have high oil resistance and wear resistance requirements for seals. Polyurethane oil seals can adapt to media such as engine oil and gear oil and can also cope with high-speed rotation conditions, reduce the risk of leakage, and improve equipment reliability.
4. Supplementary instructions for special working conditions
It should be noted that ordinary ester polyurethane may hydrolyze in high-temperature, hot, humid, and watery environments. It is recommended to use either polyurethane (with better water resistance and slightly worse oil resistance) for such working conditions; when the long-term working temperature exceeds 110°C or is lower than -40°C, special formula products need to be customized to avoid performance degradation.
Comparison of the effects of polyurethane and traditional materials (nitrile, fluorine rubber)
To help you judge the suitability more clearly, the following compares the application effects of polyurethane and common sealing materials in O-rings and oil seals:
| performance dimension | Polyurethane (PU) | Nitrile rubber (NBR) | Fluorine rubber (FKM) |
|---|---|---|---|
| Wear resistance | Excellent (5-10 times that of NBR) | Generally | Better |
| Pressure resistance | High (up to 50MPa) | Medium (≤5MPa requires retaining ring) | Higher |
| Oil resistance | Excellent (suitable for mineral oil and hydraulic oil) | good | Excellent (more corrosion resistance) |
| Temperature range | -40℃~120℃(modified and expandable) | 0℃~75℃ | -20℃~200℃ |
| Cost-effectiveness | High (long life, low overall cost) | Low (low unit price, frequent replacement) | Low (high unit price, only suitable for special corrosion conditions) |
Conclusion: Under most high-pressure and high-wear working conditions, polyurethane is the most cost-effective choice; only under strong corrosion and ultra-high temperature working conditions, is fluorine rubber more suitable; under ordinary low-pressure working conditions, nitrile rubber can be used to control costs.
Key Points to Buy Polyurethane O-Rings and Oil Seals
Choosing the right polyurethane seal requires a combination of working conditions, specifications, and supplier strength. The following points will help you avoid procurement risks and increase procurement value:
1. Clarify the working conditions parameters and customize the adaptation formula
Key parameters need to be provided before purchasing: working pressure, temperature range, medium type (oil/water/chemical substances), and movement mode (reciprocating/rotating). The supplier can recommend ester/ether or ordinary/modified formula products accordingly to avoid sealing failure due to improper formula.
2. Pay attention to production technology and quality control
It is preferred to use imported raw materials (European and Japanese brands) and suppliers with MES intelligent management systems to ensure stable product performance. At the same time, confirm whether the product has been tested for compression permanent deformation, abrasion resistance, and media resistance, and provide a test report.
3. Confirm specifications and installation compatibility
Polyurethane has a higher hardness, so the installation groove design needs to be slightly different from that of nitrile rubber. It is recommended that the supplier provide groove size guidelines; at the same time, confirm the product’s Shore hardness (commonly 70-90D) to meet the equipment sealing requirements.
4. Prioritize one-stop service providers
KODA is a manufacturer with customization capabilities, fast delivery, and after-sales technical support. It can respond to non-standard specifications and guide installation, troubleshooting, etc., to reduce subsequent maintenance costs. Please contact us if necessary.
Application value of polyurethane O-rings and oil seals
Polyurethane materials are used in O-rings and oil seals, which can significantly improve the wear resistance, pressure resistance, and service life of seals. They are suitable for most harsh industrial working conditions and achieve long-term savings in equipment operation and maintenance costs by reducing replacement frequency and leakage risks. Whether it is construction machinery, hydraulic systems, or automotive transmission equipment, polyurethane seals can become the core component to improve equipment reliability with their balanced performance and high-cost performance.
If you need to customize polyurethane O-rings or oil seals according to specific working conditions or want to obtain product samples and test reports, you can contact us directly. Our professional technical team will provide you with a one-to-one adaptation plan to help improve equipment sealing performance and operating efficiency.
